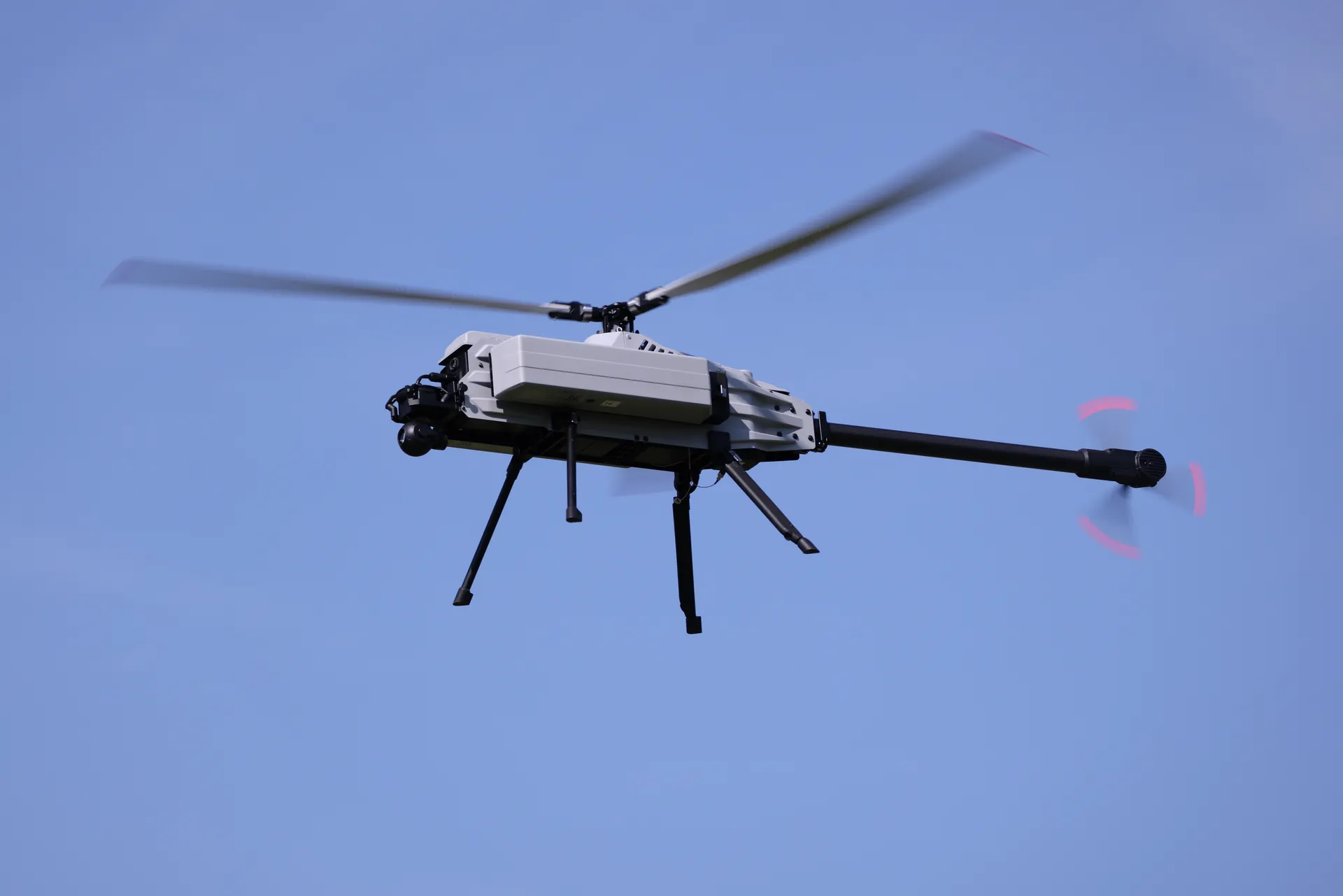

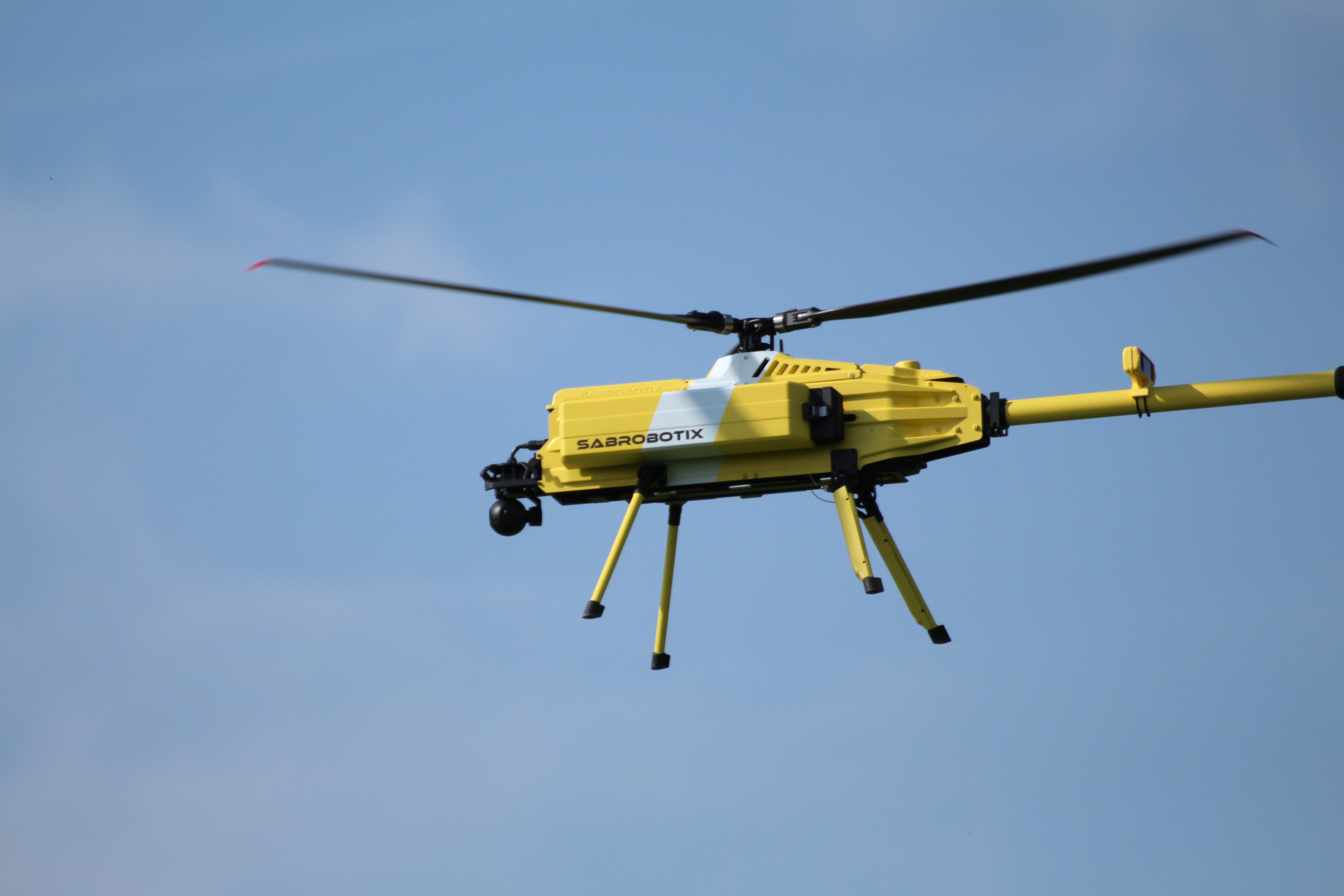

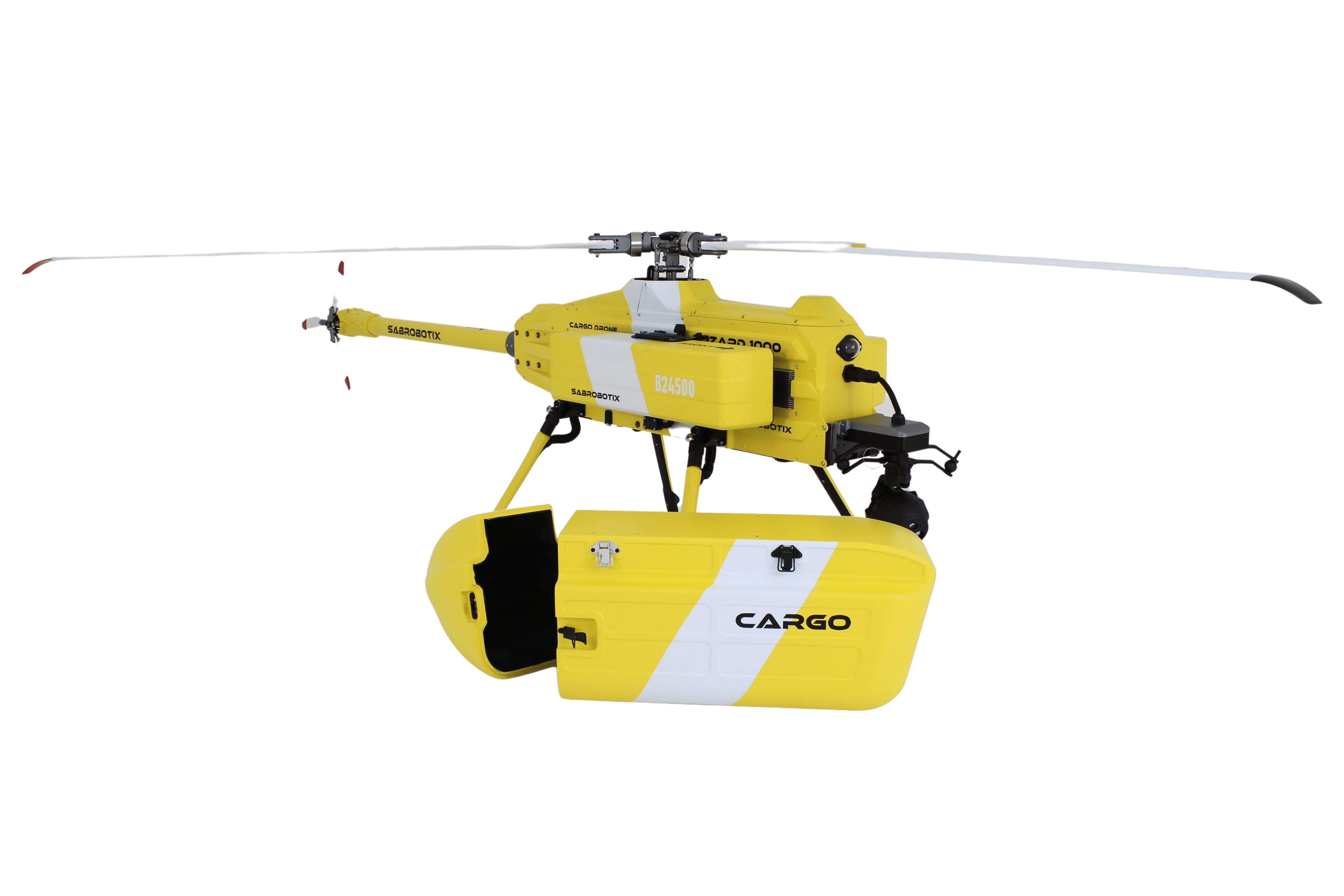

Heavy-duty unmanned helicopter platform
Lizard 1000
Why choose Lizard 1000?
Lizard platforms are built on a helicopter architecture designed for endurance, efficiency and mission reliability.
Unlike multirotors, this configuration excels in forward flight, range and payload capability.
Lizard platforms are built on a helicopter architecture designed for endurance, efficiency and mission reliability.
Unlike multirotors, this configuration excels in forward flight, range and payload capability.
Lizard platforms are built on a helicopter architecture designed for endurance, efficiency and mission reliability.
Unlike multirotors, this configuration excels in forward flight, range and payload capability.
Longer Endurance
Efficient cruise flight without excessive power drain
Longer Endurance
Efficient cruise flight without excessive power drain
Longer Endurance
Efficient cruise flight without excessive power drain
Higher Transit Speed
Reach distant areas faster than conventional multirotors
Higher Transit Speed
Reach distant areas faster than conventional multirotors
Higher Transit Speed
Reach distant areas faster than conventional multirotors
Extended Operational Range
Cover larger areas in a single mission
Extended Operational Range
Cover larger areas in a single mission
Extended Operational Range
Cover larger areas in a single mission
Payload Efficiency
Heavy loads without performance degradation
Payload Efficiency
Heavy loads without performance degradation
Payload Efficiency
Heavy loads without performance degradation
Wind & Weather Stability
Consistent control in challenging conditionst
Wind & Weather Stability
Consistent control in challenging conditionst
Wind & Weather Stability
Consistent control in challenging conditionst
Key Capabilities & Features
Built for heavy payload operations
Built for heavy payload operations
Built for heavy payload operations

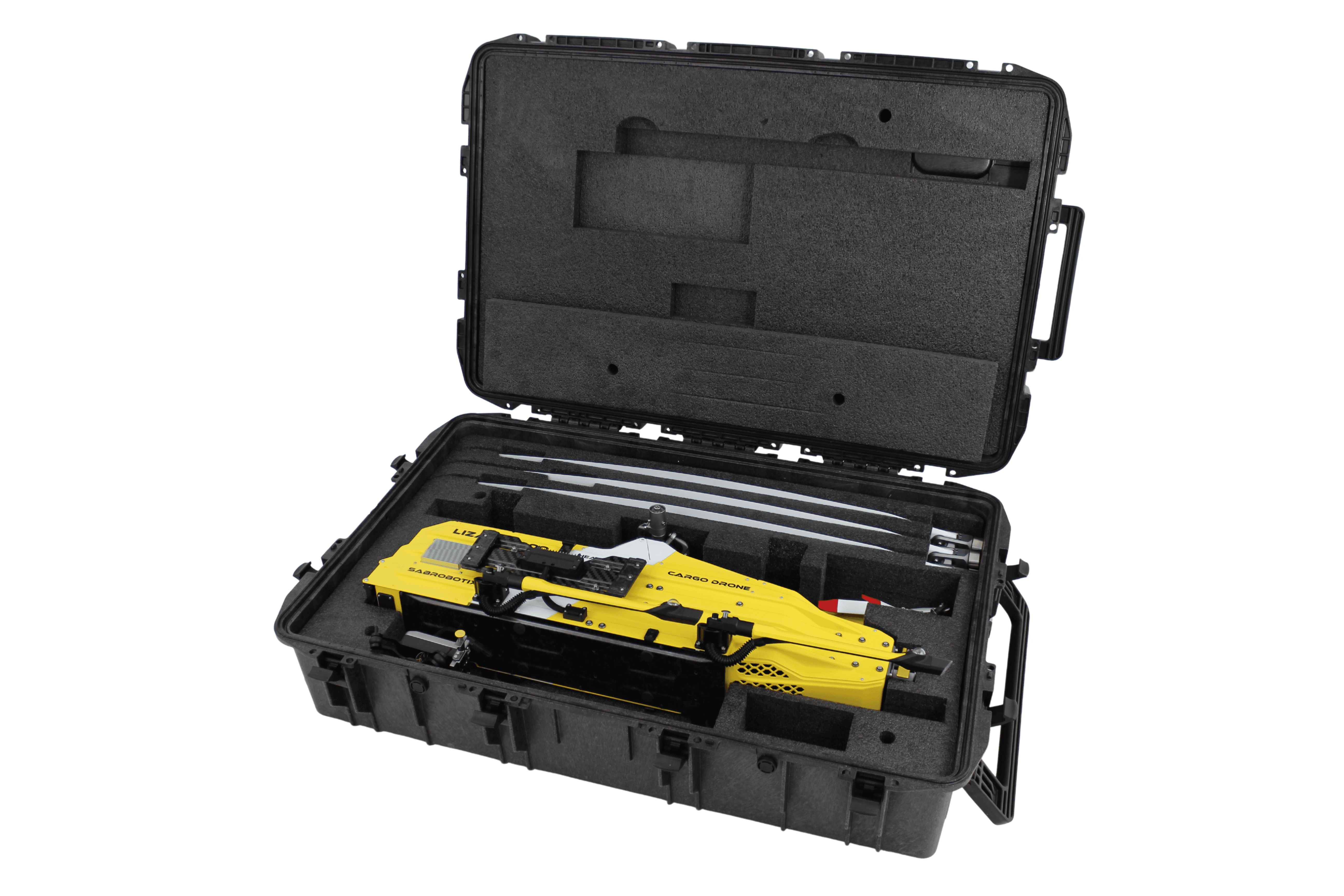

Rapid Deployment
Rapid Deployment
Rapid Deployment
Extended endurance for long missions
Extended endurance for long missions
Extended endurance for long missions
Superior stability in harsh environments
Superior stability in harsh environments
Superior stability in harsh environments
Technical Overview
Key Characteristics
Key Characteristics
Key Characteristics
Dimensions (L x W x H)
1792 x 398 x 370 mm
Dimensions (L x W x H)
1792 x 398 x 370 mm
Dimensions (L x W x H)
1792 x 398 x 370 mm
Rotor Diameter
2254 mm
Rotor Diameter
2254 mm
Rotor Diameter
2254 mm
Max. Take-off Weight
35 Kg
Max. Take-off Weight
35 Kg
Max. Take-off Weight
35 Kg
Weight (w\o batteries)
11.2 Kg
Weight (w\o batteries)
11.2 Kg
Weight (w\o batteries)
11.2 Kg
Payload Capacity
Up to 15 Kg
Payload Capacity
Up to 15 Kg
Payload Capacity
Up to 15 Kg
Endurance
75 min.
Endurance
75 min.
Endurance
75 min.
Optimal Cruise Speed
18 m/s (34.9 kn)
Optimal Cruise Speed
18 m/s (34.9 kn)
Optimal Cruise Speed
18 m/s (34.9 kn)
Max. Horizontal Speed
35 m/s (68 kn)
Max. Horizontal Speed
35 m/s (68 kn)
Max. Horizontal Speed
35 m/s (68 kn)
Max. Climb & Descent Speed
3 m/s
Max. Climb & Descent Speed
3 m/s
Max. Climb & Descent Speed
3 m/s
Deployment Area
4 m²
Deployment Area
4 m²
Deployment Area
4 m²
Deployment Time
<5 min.
Deployment Time
<5 min.
Deployment Time
<5 min.
Enviromental
Enviromental
Enviromental
Wind Resistance
22 m/s (42.7 kn)
Wind Resistance
22 m/s (42.7 kn)
Wind Resistance
22 m/s (42.7 kn)
Operating Temperature
-20° to +40° C (-4° to +104° F)
Operating Temperature
-20° to +40° C (-4° to +104° F)
Operating Temperature
-20° to +40° C (-4° to +104° F)
Max. Flight Altitude
4000 m
Max. Flight Altitude
4000 m
Max. Flight Altitude
4000 m
External Resistance
Rain, Dust
External Resistance
Rain, Dust
External Resistance
Rain, Dust
Applications for Lizard 1000
Emergency Logistics in Remote Areas

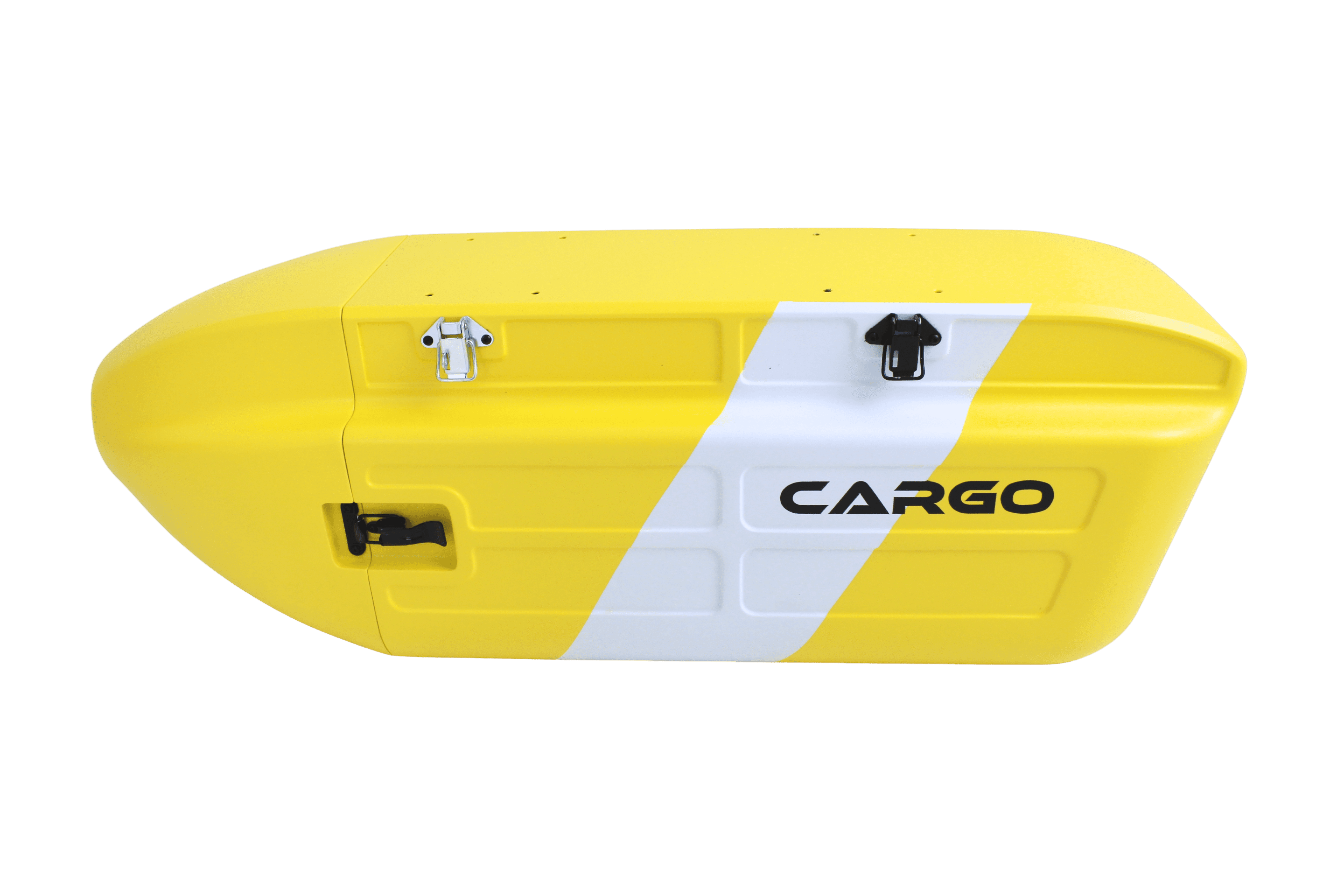

Transports up to 15 kg of medical supplies in thermally controlled boxes. Capable of landing in tight 2.5 – 4 m² areas, for maximum flexibility.
Offshore Inspection (Wind, O&G)
Corrosion-resistant body and ability to carry up to 15 kg of inspection tools (e.g., 4K gimbal + UT probe). Operates from small service vessels.
Power Line / Pipeline Inspection
Carries up to 15 kg of LiDAR and RGB payloads in a single flight. Its swashplate rotor system ensures stability in every condition and environment.
First Response Sea Rescue
With thermal optics and rescue payloads, LIZARD can locate and assist people overboard before rescue units arrive.
Emergency Logistics in Remote Areas
Transports up to 15 kg of medical supplies in thermally controlled boxes. Capable of landing in tight 2.5 – 4 m² areas, for maximum flexibility.
Offshore Inspection (Wind, O&G)
Corrosion-resistant body and ability to carry up to 15 kg of inspection tools (e.g., 4K gimbal + UT probe). Operates from small service vessels.
Power Line / Pipeline Inspection
Carries up to 15 kg of LiDAR and RGB payloads in a single flight. Its swashplate rotor system ensures stability in every condition and environment.
First Response Sea Rescue
With thermal optics and rescue payloads, LIZARD can locate and assist people overboard before rescue units arrive.
Emergency Logistics in Remote Areas
Transports up to 15 kg of medical supplies in thermally controlled boxes. Capable of landing in tight 2.5 – 4 m² areas, for maximum flexibility.
Offshore Inspection (Wind, O&G)
Corrosion-resistant body and ability to carry up to 15 kg of inspection tools (e.g., 4K gimbal + UT probe). Operates from small service vessels.
Power Line / Pipeline Inspection
Carries up to 15 kg of LiDAR and RGB payloads in a single flight. Its swashplate rotor system ensures stability in every condition and environment.
First Response Sea Rescue
With thermal optics and rescue payloads, LIZARD can locate and assist people overboard before rescue units arrive.
Emergency Logistics in Remote Areas
Transports up to 15 kg of medical supplies in thermally controlled boxes. Capable of landing in tight 2.5 – 4 m² areas, for maximum flexibility.
Offshore Inspection (Wind, O&G)
Corrosion-resistant body and ability to carry up to 15 kg of inspection tools (e.g., 4K gimbal + UT probe). Operates from small service vessels.
Power Line / Pipeline Inspection
Carries up to 15 kg of LiDAR and RGB payloads in a single flight. Its swashplate rotor system ensures stability in every condition and environment.
First Response Sea Rescue
With thermal optics and rescue payloads, LIZARD can locate and assist people overboard before rescue units arrive.
Emergency Logistics in Remote Areas
Transports up to 15 kg of medical supplies in thermally controlled boxes. Capable of landing in tight 2.5 – 4 m² areas, for maximum flexibility.
Offshore Inspection (Wind, O&G)
Corrosion-resistant body and ability to carry up to 15 kg of inspection tools (e.g., 4K gimbal + UT probe). Operates from small service vessels.
Power Line / Pipeline Inspection
Carries up to 15 kg of LiDAR and RGB payloads in a single flight. Its swashplate rotor system ensures stability in every condition and environment.
First Response Sea Rescue
With thermal optics and rescue payloads, LIZARD can locate and assist people overboard before rescue units arrive.
Emergency Logistics in Remote Areas
Transports up to 15 kg of medical supplies in thermally controlled boxes. Capable of landing in tight 2.5 – 4 m² areas, for maximum flexibility.
Offshore Inspection (Wind, O&G)
Corrosion-resistant body and ability to carry up to 15 kg of inspection tools (e.g., 4K gimbal + UT probe). Operates from small service vessels.
Power Line / Pipeline Inspection
Carries up to 15 kg of LiDAR and RGB payloads in a single flight. Its swashplate rotor system ensures stability in every condition and environment.
First Response Sea Rescue
With thermal optics and rescue payloads, LIZARD can locate and assist people overboard before rescue units arrive.
Emergency Logistics in Remote Areas
Transports up to 15 kg of medical supplies in thermally controlled boxes. Capable of landing in tight 2.5 – 4 m² areas, for maximum flexibility.
Offshore Inspection (Wind, O&G)
Corrosion-resistant body and ability to carry up to 15 kg of inspection tools (e.g., 4K gimbal + UT probe). Operates from small service vessels.
Power Line / Pipeline Inspection
Carries up to 15 kg of LiDAR and RGB payloads in a single flight. Its swashplate rotor system ensures stability in every condition and environment.
First Response Sea Rescue
With thermal optics and rescue payloads, LIZARD can locate and assist people overboard before rescue units arrive.
Emergency Logistics in Remote Areas
Transports up to 15 kg of medical supplies in thermally controlled boxes. Capable of landing in tight 2.5 – 4 m² areas, for maximum flexibility.
Offshore Inspection (Wind, O&G)
Corrosion-resistant body and ability to carry up to 15 kg of inspection tools (e.g., 4K gimbal + UT probe). Operates from small service vessels.
Power Line / Pipeline Inspection
Carries up to 15 kg of LiDAR and RGB payloads in a single flight. Its swashplate rotor system ensures stability in every condition and environment.
First Response Sea Rescue
With thermal optics and rescue payloads, LIZARD can locate and assist people overboard before rescue units arrive.
Emergency Logistics in Remote Areas
Transports up to 15 kg of medical supplies in thermally controlled boxes. Capable of landing in tight 2.5 – 4 m² areas, for maximum flexibility.
Offshore Inspection (Wind, O&G)
Corrosion-resistant body and ability to carry up to 15 kg of inspection tools (e.g., 4K gimbal + UT probe). Operates from small service vessels.
Power Line / Pipeline Inspection
Carries up to 15 kg of LiDAR and RGB payloads in a single flight. Its swashplate rotor system ensures stability in every condition and environment.
Large-Scale Topographic Surveying
Accurate terrain mapping over wide and complex areas, ensuring consistent data quality in challenging conditions.
First Response Sea Rescue
With thermal optics and rescue payloads, LIZARD can locate and assist people overboard before rescue units arrive.
Emergency Logistics in Remote Areas
Transports up to 15 kg of medical supplies in thermally controlled boxes. Capable of landing in tight 2.5 – 4 m² areas, for maximum flexibility.
Offshore Inspection (Wind, O&G)
Corrosion-resistant body and ability to carry up to 15 kg of inspection tools (e.g., 4K gimbal + UT probe). Operates from small service vessels.
Power Line / Pipeline Inspection
Carries up to 15 kg of LiDAR and RGB payloads in a single flight. Its swashplate rotor system ensures stability in every condition and environment.
Large-Scale Topographic Surveying
Accurate terrain mapping over wide and complex areas, ensuring consistent data quality in challenging conditions.
First Response Sea Rescue
With thermal optics and rescue payloads, LIZARD can locate and assist people overboard before rescue units arrive.
Emergency Logistics in Remote Areas
Transports up to 15 kg of medical supplies in thermally controlled boxes. Capable of landing in tight 2.5 – 4 m² areas, for maximum flexibility.
Offshore Inspection (Wind, O&G)
Corrosion-resistant body and ability to carry up to 15 kg of inspection tools (e.g., 4K gimbal + UT probe). Operates from small service vessels.
Power Line / Pipeline Inspection
Carries up to 15 kg of LiDAR and RGB payloads in a single flight. Its swashplate rotor system ensures stability in every condition and environment.
Large-Scale Topographic Surveying
Accurate terrain mapping over wide and complex areas, ensuring consistent data quality in challenging conditions.
First Response Sea Rescue
With thermal optics and rescue payloads, LIZARD can locate and assist people overboard before rescue units arrive.
Emergency Logistics in Remote Areas
Transports up to 15 kg of medical supplies in thermally controlled boxes. Capable of landing in tight 2.5 – 4 m² areas, for maximum flexibility.
Offshore Inspection (Wind, O&G)
Corrosion-resistant body and ability to carry up to 15 kg of inspection tools (e.g., 4K gimbal + UT probe). Operates from small service vessels.
Power Line / Pipeline Inspection
Carries up to 15 kg of LiDAR and RGB payloads in a single flight. Its swashplate rotor system ensures stability in every condition and environment.
Large-Scale Topographic Surveying
Accurate terrain mapping over wide and complex areas, ensuring consistent data quality in challenging conditions.
First Response Sea Rescue
With thermal optics and rescue payloads, LIZARD can locate and assist people overboard before rescue units arrive.
Engineered for demanding missions.
Built for missions where reliability defines success.
Engineered for demanding missions.
Built for missions where reliability defines success.
Engineered for demanding missions.
Built for missions where reliability defines success.
